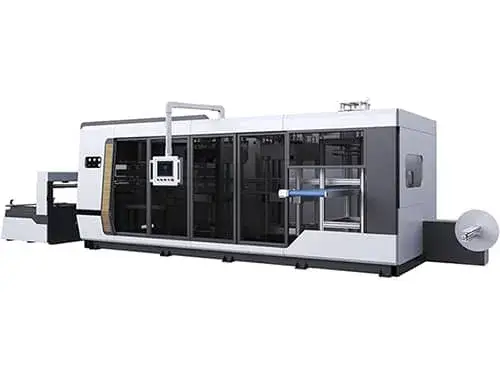

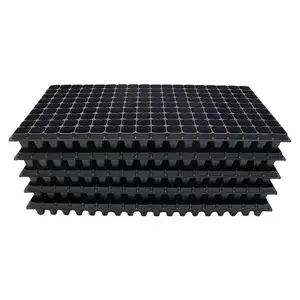

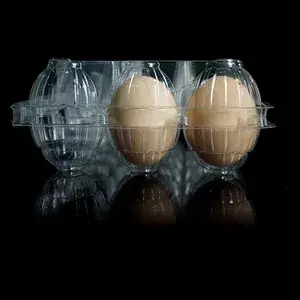

This multi-station thermoforming machine is designed to process PS, PP, PVC, PET, HIPS, and other plastic sheets into a wide range of shapes, including circular, square, and irregular products. It is ideal for producing packaging such as boxes, plates, trays, bowls, lids, and more. Applications cover food packaging, cosmetic packaging, and industrial packaging, making it a versatile solution for different production needs.
| Model |
|
|
| Forming pressure | Positive and negative pressure forming | Positive and negative pressure forming |
| Applicable material | PP/PS/PET/PVC/PLA | PP/PS/PET/PVC/PLA |
| Sheet thickness | 0.2-2.0mm | 0.2-2.0mm |
| Forming area | 760×650mm | 750×850mm |
| Forming depth | ≤120mm | ≤120mm |
| Sheet width | 500-780mm | 500-800mm |
| Sheet roll diameter | 800-1000mm (approx. 500kg) |
800-1000mm (approx. 500kg) |
| Knife length | 11m | 14m |
| Production speed | 15-40 cycles/min (depend on material thickness and product type) | 15-40 cycles/min (depend on material thickness and product type) |

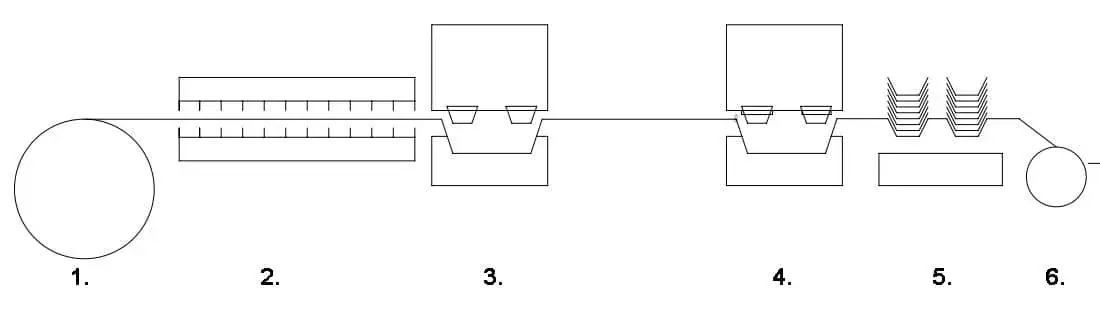

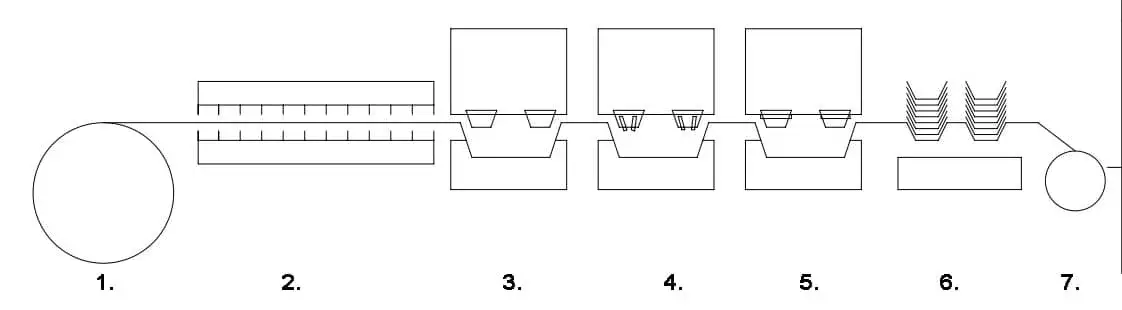

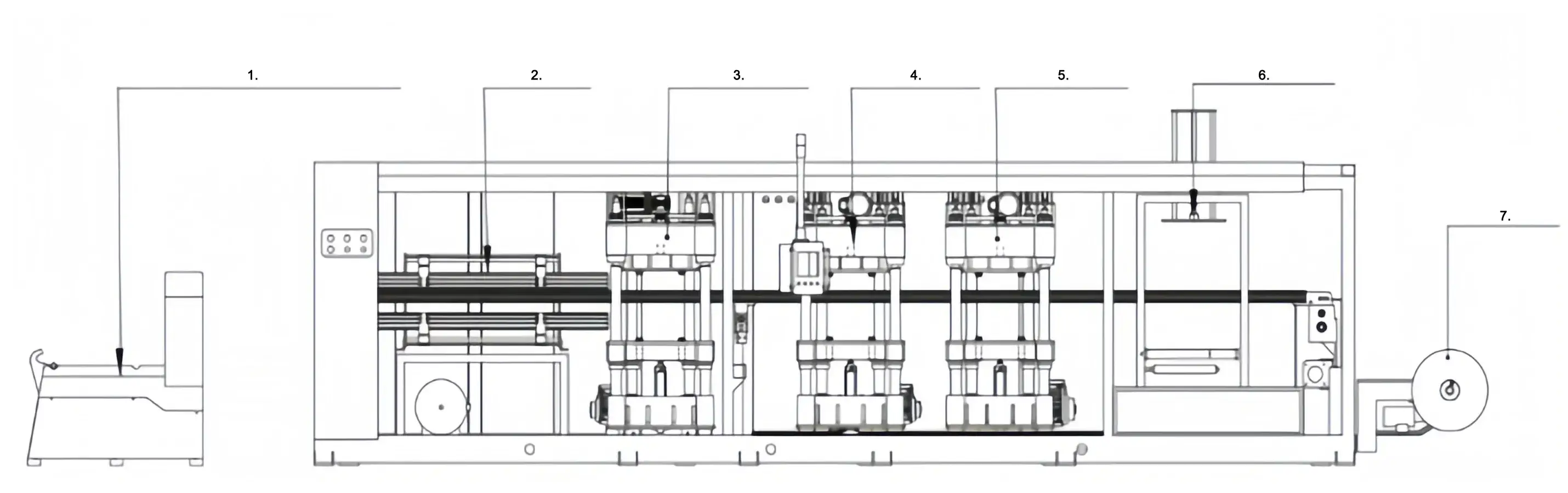

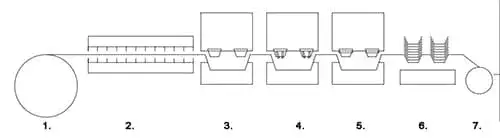

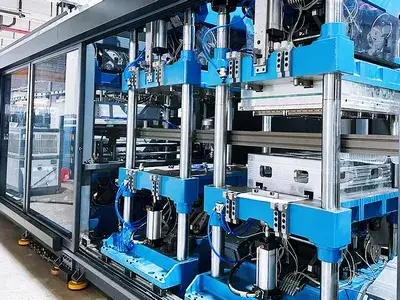

| Station options | 3 stations (forming + cutting + stacking) 4 stations (forming + cutting +hole punching + stacking) |
3 stations (forming + cutting + stacking) 4 stations (forming + cutting +hole punching + stacking) |
| Feeding motor power | 4.4kW | 5.5kW |
| Forming motor power | 5.5kW | 7.5kW |
| Punching motor power | 5.5kW | 7.5kW |
| Cutting motor power | 7.5kW | 9.5kW |
| Stacking motor power | 3kW | 4.4kW |
| Power supply | 380V, 3 phase, 50Hz | 380V, 3 phase, 50Hz |
| Air consumption | 0.5-0.8 bar | 0.5-0.8 bar |
| Cooling method | Circulating cooling water | Circulating cooling water |
| Operating system | 10.1″ color touch screen | 10.1″ color touch screen |
| Machine weight | 15tons | 20tons |
| Machine dimensions | 11.5×2.4×2.2m | 13×2.4×2.2m |

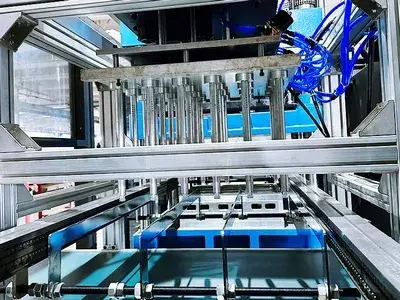

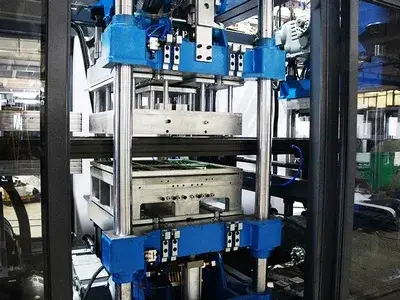

Available in 3 or 4 stations, integrating forming, hole punching, cutting, and stacking in one machine
Versatile operation, suitable for producing products both with and without air holes
Servo motor control ensures balanced power distribution for punching and cutting
Stable capacity, designed for continuous, high-volume production

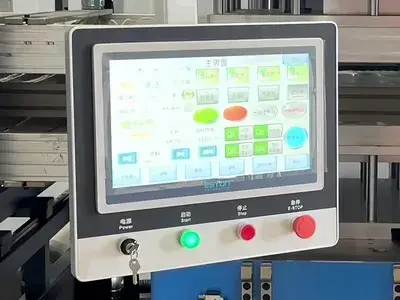

User-friendly PLC touchscreen for simple and efficient operation

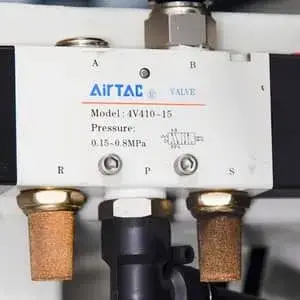

Valve

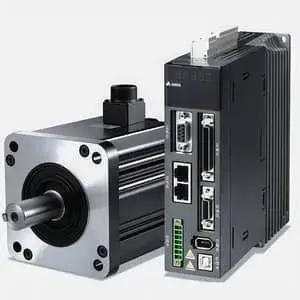

Servo motor and drive
Partner with us for efficient, precise, and sustainable thermoforming and extrusion machines made to meet global market demands.
Contact us today!
The plastic thermoforming machine with positive and negative pressure forming is the preferred choice. It provides more uniform thickness and better material distribution, producing smoother surfaces and reducing internal stress. This results in higher transparency for finished products.
Start-ups typically develop a wide variety of products, at which point the demands on moulding costs are extremely high.

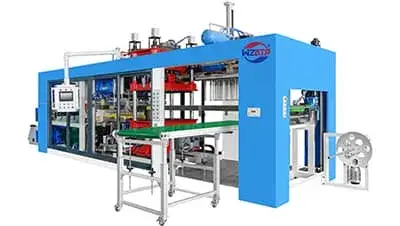

The multi-station plastic vacuum (negative pressure) forming machine is a practical choice. It has a simpler structure, lower investment cost, and easier operation and maintenance. While suited for less complex containers, it still supports efficient production.

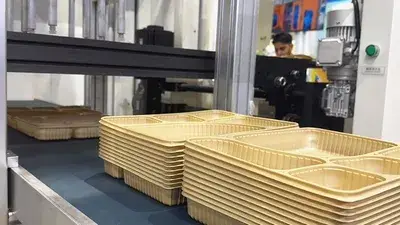

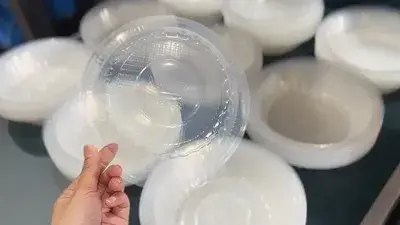

Lunch takeaway boxes are typically manufactured from polypropylene (PP) material.
Should the factory require precise die-cutting with no burrs along the outer edges, we recommend employing single-station in-mould trimming machines.
Recommend 760×540mm or 750×520mm models.
Where production volume demands take precedence over die-cutting precision, we advise utilising multi-station forming machines.
Recommend 760×650mm or ATM-75/85 models.
Our negative pressure three-station thermoforming machine boasts extensive case studies demonstrating its highly successful capability to simultaneously perform trimming, punching, and waste removal during the punching station for PS/PET products.
