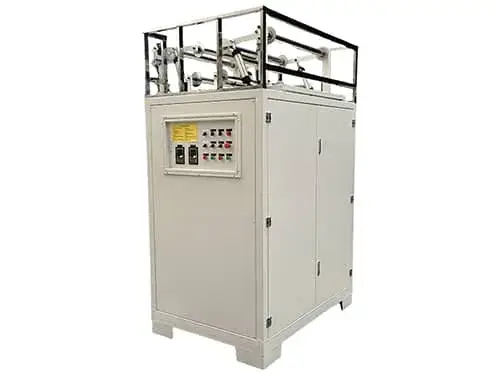

Online Crusher for Plastic Thermoforming Machine

Crushing and recycling of waste plastic sheets during plastic cup manufacturing

The online crusher automatically processes waste plastic sheets produced during the thermoforming of plastic cups. This system ensures immediate recycling, reducing waste accumulation and enhancing overall production efficiency by synchronizing with the main plastic cup manufacturing machine and diverting waste for crushing and reuse.

Request a Quote
Technical Specifications
Model ATC-800
Max. inlet width 800/900/1000mm (optional)
Inlet type Single inlet/double inlet
Main motor power 15kW×4
Main motor speed 1480rpm
Motor of conveyor transfer 5.5kW
Blower speed 2800rpm
Traction motor power 1.5kW
Traction speed 5-40m/min
Rotating blades 6
Chamber size 1000×250mm
Max. crushing capacity 250-550kg/hr
Material of blades DC53
Mesh size 8-12mm
Machine dimensions (L×W×H) 1800×1200×1500mm
Machine weight 1800kg
Mechanical Components
    • Dragger part

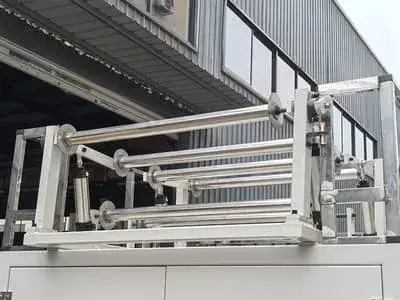

      Dragger part
      • The dragger spindle is finely processed using high-strength seamless tubes, featuring hard chrome plating for an elegant, rust-resistant appearance. It meets environmental standards and is built to be sturdy and durable.
      • The machine body is made from high-quality metal plates, offering both elegance and durability.
    • Crusher part

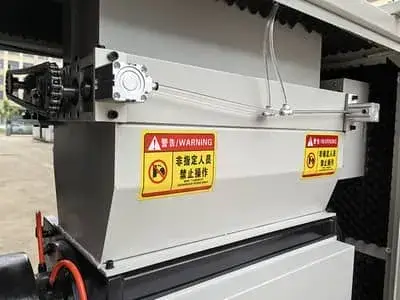

      Crusher part
      • The cutter is made from DC53 mold steel, known for its high hardness and strong wear resistance. It can be re-sharpened and is secured with high-stretch screws, ensuring stability and the ability to break down a variety of soft and hard materials.
      • The crushing machine body uses high-strength steel plates, precision-finished by machine tools and integrated through welding, ensuring long-lasting durability and resistance to deformation.
      • The tool rest features a hollow-type design, offering stable operation, low windage, and enhanced durability.
      • The belt-driven system utilizes mature technology, providing stable operation and minimal maintenance.
      • Material thickness range for crushing is 0.5-3mm. For thicker materials, please specify when placing an order.
    • Blower part

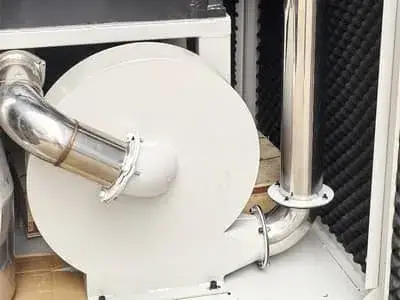

      Blower part
      • The blower housing and blades are made from high-quality metal plates, ensuring environmental hygiene, a sleek appearance, and durability.
    • Soundproof design

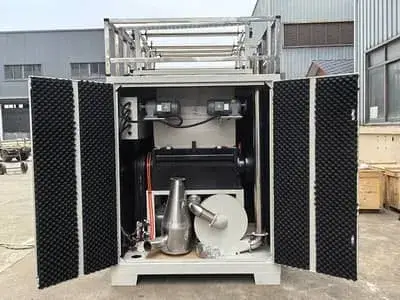

      Soundproof design
      • We use high-density soundproof cotton to maintain noise levels below 50dB during operation.
    • Finished machine

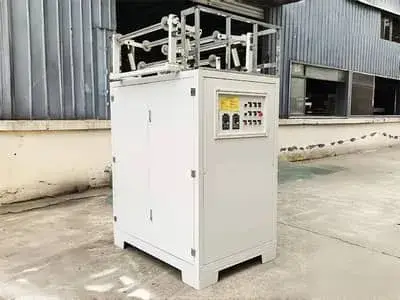

      Finished machine
      • We offer stock machines for prompt shipment.
