PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line

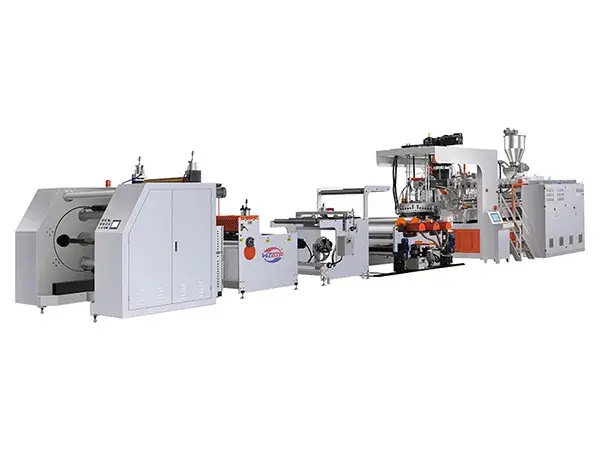

PET/PLA Plastic Sheet Extrusion Line

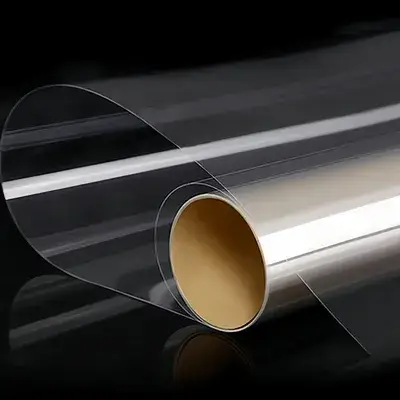

Combining extrusion, calendering and winding to turn raw plastic pellets into plastic sheets or roll stocks ready for plastic thermoforming

We have been engineering and refining PET/PLA plastic sheet extrusion lines with a strong focus on efficiency, reliability, and technological advancement. Designed to deliver consistent sheet quality with excellent transparency and stability, the system combines extrusion, calendering, and winding processes to convert raw pellets into sheets or roll stock ready for thermoforming. From cups and bowls to trays, blister packs, and stationery packaging, the plastic sheet extrusion machine provides manufacturers with a versatile and dependable solution for a wide range of thermoforming applications.

Request a Quote

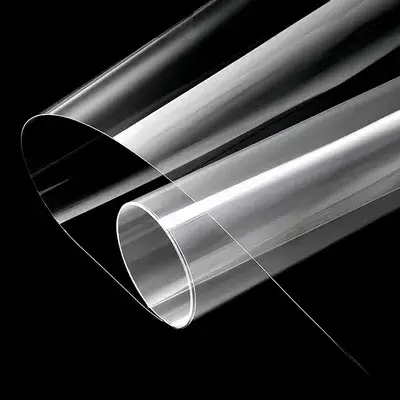

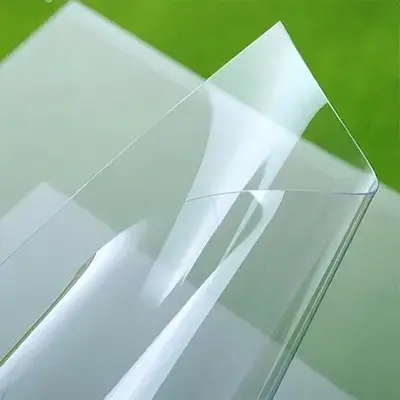

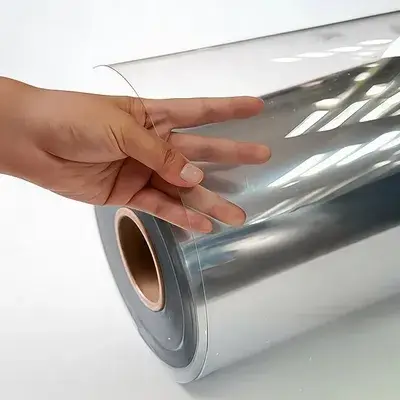

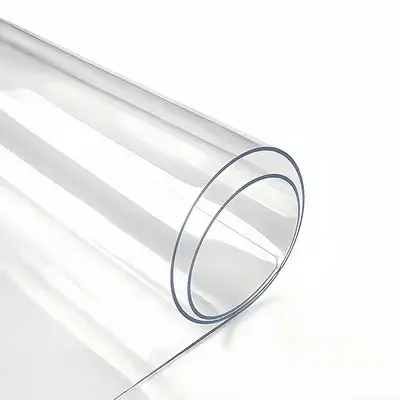

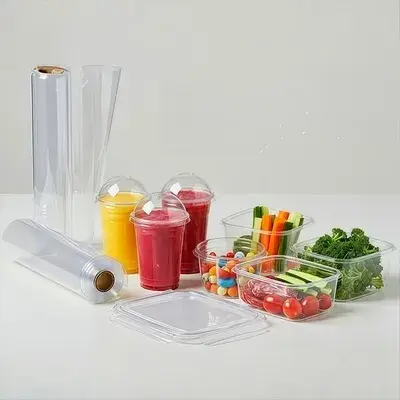

Sample Showcase
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
Technical Specifications
Model ATS-75
Applicable material PET/PLA
Production capacity 300-450kg/h
Screw diameter 75mm
Sheet thickness 0.2-1.5mm
Die width 1000mm
Effective sheet width 850mm
Upper Calender Ø320×1100mm
Middle Calender Ø500×1100mm
Lower Calender Ø500×1100mm
Rewinding method Double rewinder
Max. rewinding diameter 800mm
Total power 350kW
Operation power 200kW
Power Supply 380V, 3 phase, 50Hz
Machine dimensions (L×W×H) 32×6×4mm
Machine weight 15t

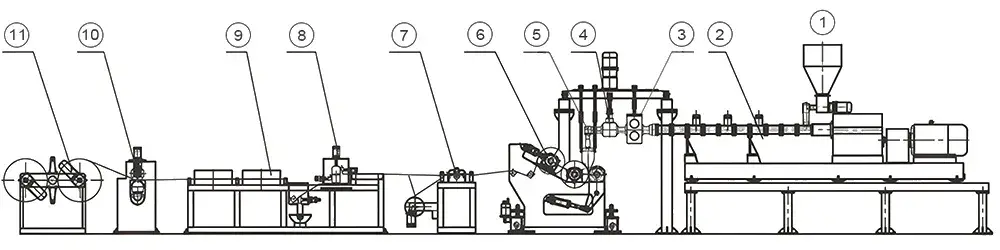

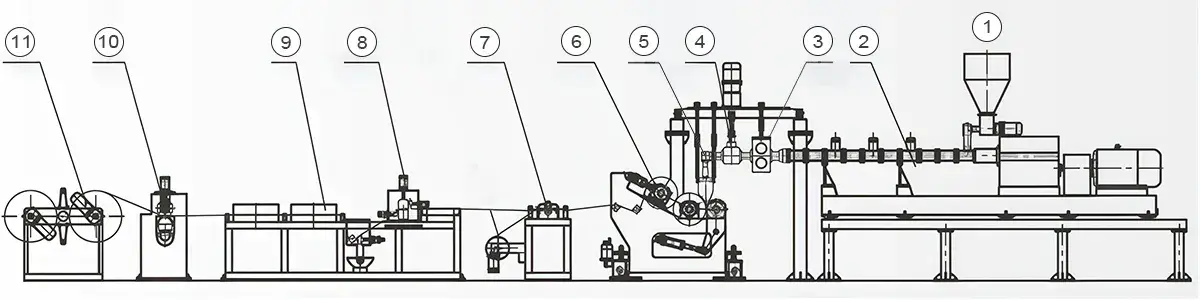

Working Process
PET/PLA Plastic Sheet Extrusion Line
  • Feeding system
  • Ø75 mm parallel twin-screw extruder
  • Hydraulic screen changer
  • Metering pump
  • Die head mould
  • Three-roll calender
  • Edge trim
  • Silicone oil coating
  • Dryer
  • Traction unit
  • Rewinder
  • Electrical control system
Features
    1. 1

      High efficiency with large-capacity extrusion and low power consumption

    1. 2

      Screw design with large L/D ratio ensures excellent plasticizing performance

    1. 3

      Ergonomic design makes operation simple, reliable, and comprehensive in function

Electrical Components

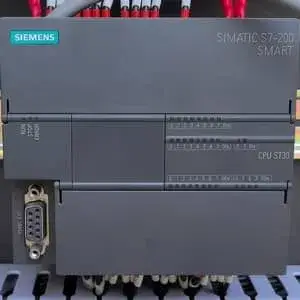

    1. PLC systemPLC system
    1. InverterInverter

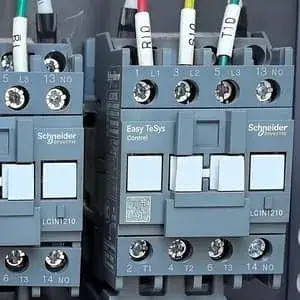

    1. ContactorContactor

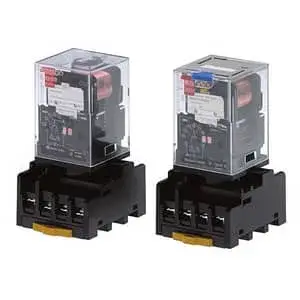

    1. Relay
      Relay
Configuration Details

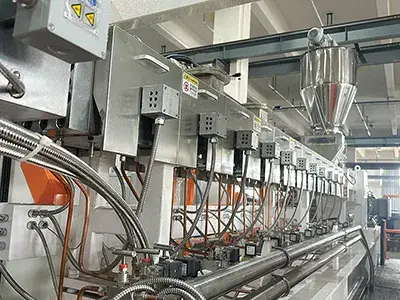

    1. Extrusion unit
      Extrusion unit
      • Screw & barrel diameter: Ø75 mm, twin-screw design
      • Material: wear-resistant nitrided steel
      • Screw hardness: HV950-1050
      • Barrel cover: cast copper and cast aluminum for energy-efficient heat retention
      • Heating power: 46.5 kW
      • Cooling: circulating water pump system
      • Pump motor: 0.55 kW
      • Main motor: 132 kW AC motor
      • Inverter: high-performance, constant torque, precise speed control
      • Reducer: high-torque gearbox with direct motor drive
      • Bearings: NSK (Japan)
      • Mainframe: steel platform structure

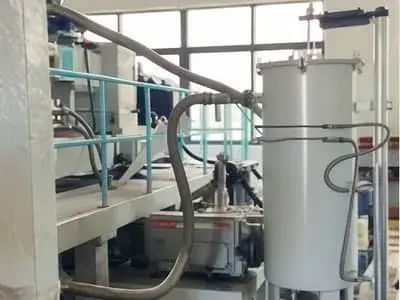

    1. Vacuum pump system
      Vacuum pump system
      • Type: roots-roots-water ring pump, 3-stage system
      • Ultimate vacuum: ≤10 Pa
      • Maximum pumping volume: 150 L/s
      • Operating vacuum: ≤300 Pa
      • Tank material: stainless steel 304
      • Equipped with feeding device, two vacuum degassing ports, and one natural degassing port

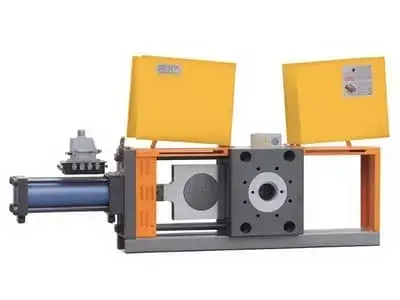

    1. Screen changer
      Screen changer
      • Type: hydraulic screen changer
      • Structure: double-column, two-station design
      • Heating: stainless steel heating rods

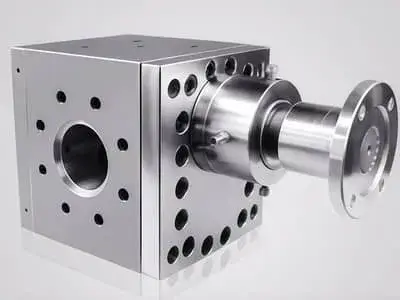

    1. Gear pump
      Gear pump
      • Drive connection: cardan shaft connectors
      • Drive system: gearbox + AC motor
      • Equipped with Italy Gefran pressure sensor for closed-loop speed control, ensuring high accuracy and durability

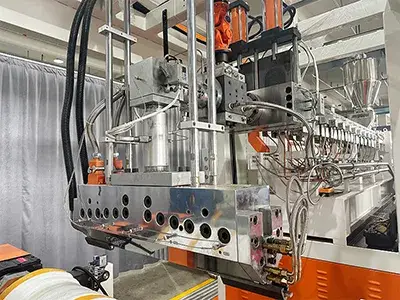

    1. Die head
      Die head
      • Die head width: 1000 mm
      • Max sheet width: 850 mm
      • Type: T-die with hanger runner (JC Time brand)
      • Material: high-quality die steel
      • Runner surface: chrome-plated, thickness 0.03-0.05 mm
      • Surface finish: polished to mirror (cavity Ra 0.1 µm, die lip Ra 0.05 µm)

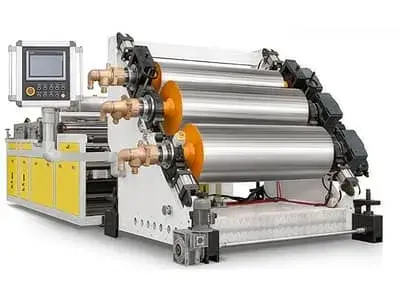

    1. Calender system
      Calender system
      • Roller coaxiality: ≤0.005 mm
      • Roller surface finish: Ra ≤0.016 µm
      • Surface hardness: HRC58-62
      • Chrome plating thickness: ≥0.08 mm
      • Structure: horizontal J-type, three-roll calender
      • Frame: solid steel plate; Bearings: NSK (Japan)
      • Drive: independent motor control for each roll, adjustable individually or simultaneously
      • Motor power: 4.4 kW
      • Bearing type: spherical ball bearings (NSK, Japan)
      • Pressing: hydraulic open/close with manual worm gear fine adjustment (self-locking)
      • Safety: emergency stop switch and synchronous control system

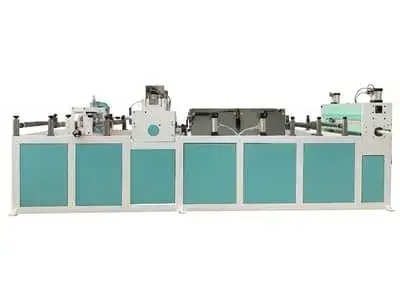

    1. Roller cooling system
      Roller cooling system
      • Cooling medium: softened and purified water
      • Control range: room temperature to 100 °C
      • Accuracy: ±1 °C
      • Pump power: 4 kW stainless steel pump
      • Condenser: double-parallel type for enhanced cooling
      • Valve: pneumatic angle seat valve
      • Installation: mounted on cooling bracket for easy access and maintenance

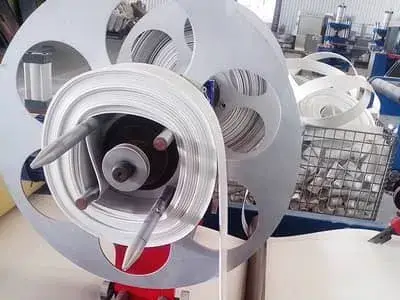

    1. Edge trimming unit
      Edge trimming unit
      • Bracket length: 5 m
      • Pulling rollers: aluminum, Ø70 × 1000 mm
      • Trimming device: 2 round knives
      • Waste edge winding device: 2 sets
      • Static eliminator: 1 set
      • Online crusher with air delivery: 1 set

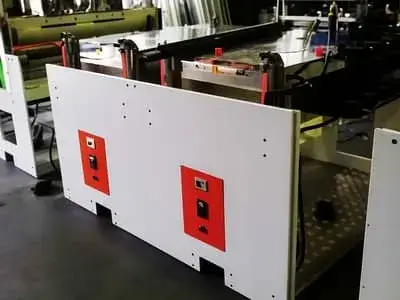

    1. Silicon oil coating unit
      Silicon oil coating unit
      • Four-roll coating system, double-sided application
      • Sealed oven drying method

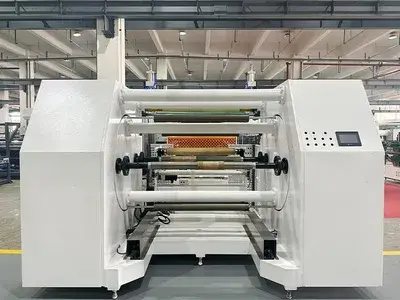

    1. Rewinding system
      Rewinding system
      • Double-station flip design
      • Control: automatic fixed-length counting
      • Max roll diameter: ﹤800 mm
      • Paper core: 3 inches

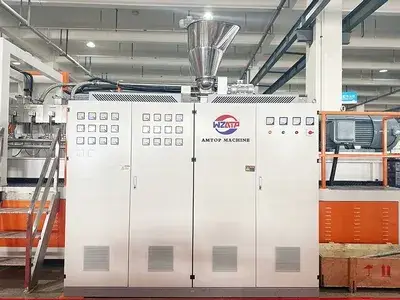

    1. Control system
      Control system
      • PLC with touchscreen interface for easy operation
      • Emergency stop button for operator safety
      • Intelligent temperature control module with Taiwan solid-state relay
      • High-precision temperature control
      • Extruder motor: stable speed, high transmission performance
      • Rollers driven by motor and reducer: hard gear, high torque, high speed, low noise
      • Auxiliary drive system: high precision, low-frequency torque control
      • Electrical cabinet protection grade: IP21
Videos

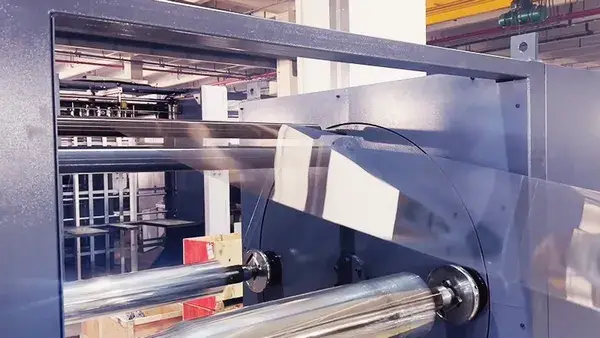

    1. ATS-85 PET Plastic Sheet Extruder Machine
      ATS-85 PET Plastic Sheet Extruder Machine

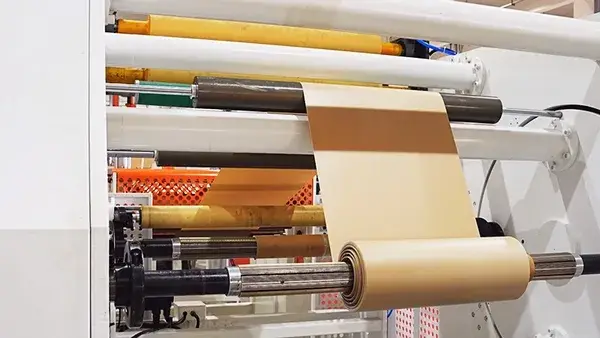

    1. ATS-75 PLA Sheet Extrusion Machine
      ATS-75 PLA Sheet Extrusion Machine
Your Packaging Goals,
Our Expertise

Partner with us for efficient, precise, and sustainable thermoforming and extrusion machines made to meet global market demands.
Contact us today!

Get in Touch
Related Thermoforming Machines
See More
  • PP/PS/PE Plastic Sheet Extrusion Line
    PP/PS/PE Plastic Sheet Extrusion Line
  • PET/PLA Plastic Sheet Extrusion Line
    PET/PLA Plastic Sheet Extrusion Line
Other Plastic Processing Equipment
Discover Our Machines
  • Plastic Thermoforming Machine (Single Station)
    Plastic Thermoforming Machine (Single Station)
  • Plastic Thermoforming Machine (Multi-Station)
    Plastic Thermoforming Machine (Multi-Station)
  • Plastic Cup Making Machine
    Plastic Cup Making Machine
How can I choose the right thermoforming equipment?

Thermoforming machines are designed for different product types and production requirements. We recommend identifying your core product category first and then selecting equipment that best fits those needs. No single machine can cover every product in the market, focusing on your main products ensures efficiency and market success.

How do I know what material my products are made of?

Common plastic packaging materials include PP, PET, PVC, HIPS, and BOPS:

  • PP: High stiffness and heat-resistant, widely used for beverage cups, lunch boxes, and trays
  • PET: Transparent but not heat-resistant, typically used for fruit, vegetable, and food trays stored at room temperature
  • BOPS: Offers strong rigidity and transparency, often used for bakery packaging such as bread and cake boxes
Can different products be made on the same machine?

By changing molds, the same machine can produce different products. The key condition is that the production volume and product specifications must meet the requirements of the chosen machine model.

How are molds produced after a machine order is confirmed?

Once your order is confirmed, we design the molds based on your product samples and share the drawings for your approval. After confirming the design and dimensions, we proceed with mold manufacturing.

What payment methods are available?

Our standard payment options are T/T and L/C. If you require alternative methods, please contact us to discuss suitable arrangements.
